3D LCD Instrument Cluster

Overview Solution Block Diagram Customer and Cooperation Case

3D LCD Instrumentation Solution Based on X9E Features of the Solution:
• The X9E provides excellent computing performance and general graphics acceleration capabilities to meet the demands of 3D LCD instrumentation
• Supports QNX operating system
• Complies with AEC-Q100 Grade 2 reliability requirements and has achieved ISO 26262 ASIL B functional safety certification
• Includes a dedicated safety island with a dual-core lockstep Cortex-R5F CPU, with diagnostic coverage meeting ISO 26262 ASIL D functional safety requirements
• Has been mass-produced in dozens of domestic and international vehicle models

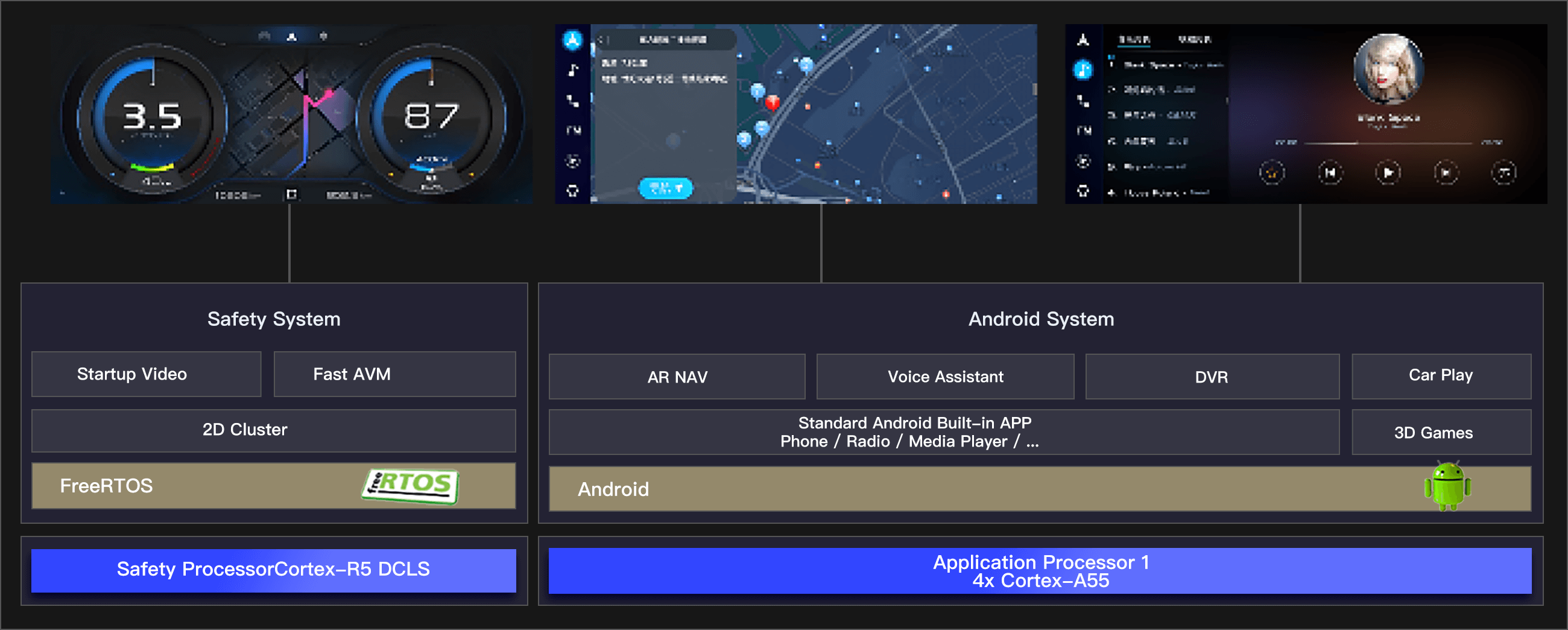

Solution Block Diagram
