X9H
Product Features:
-

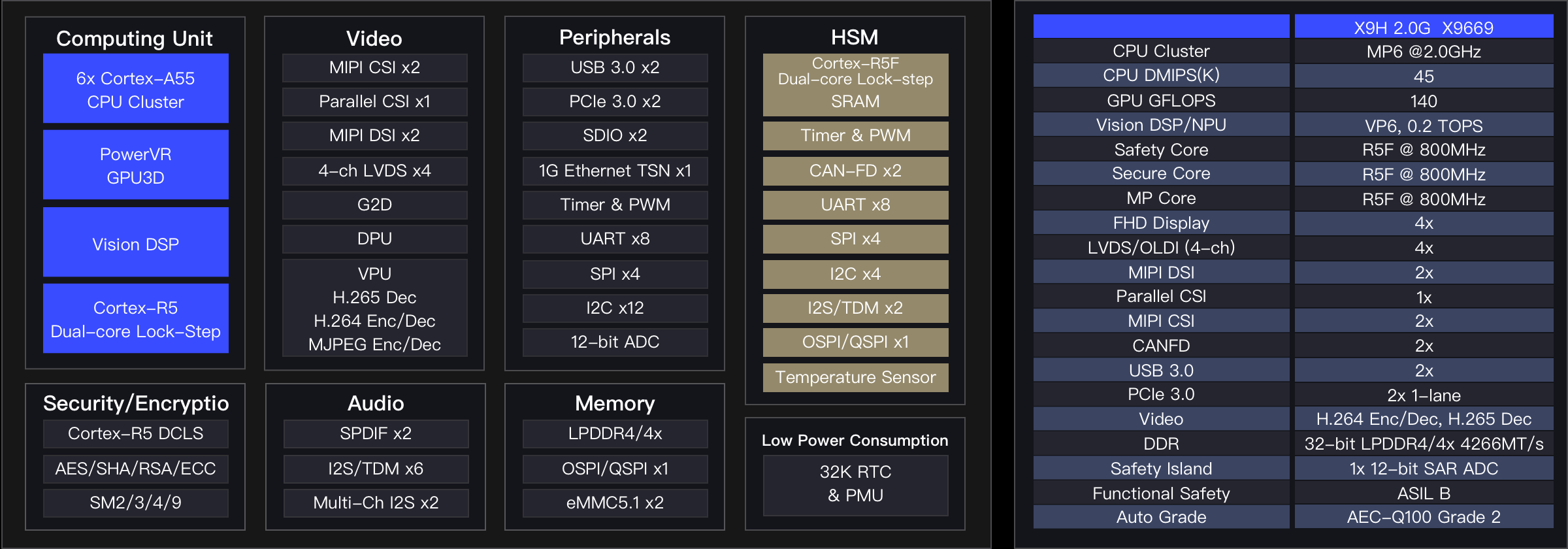

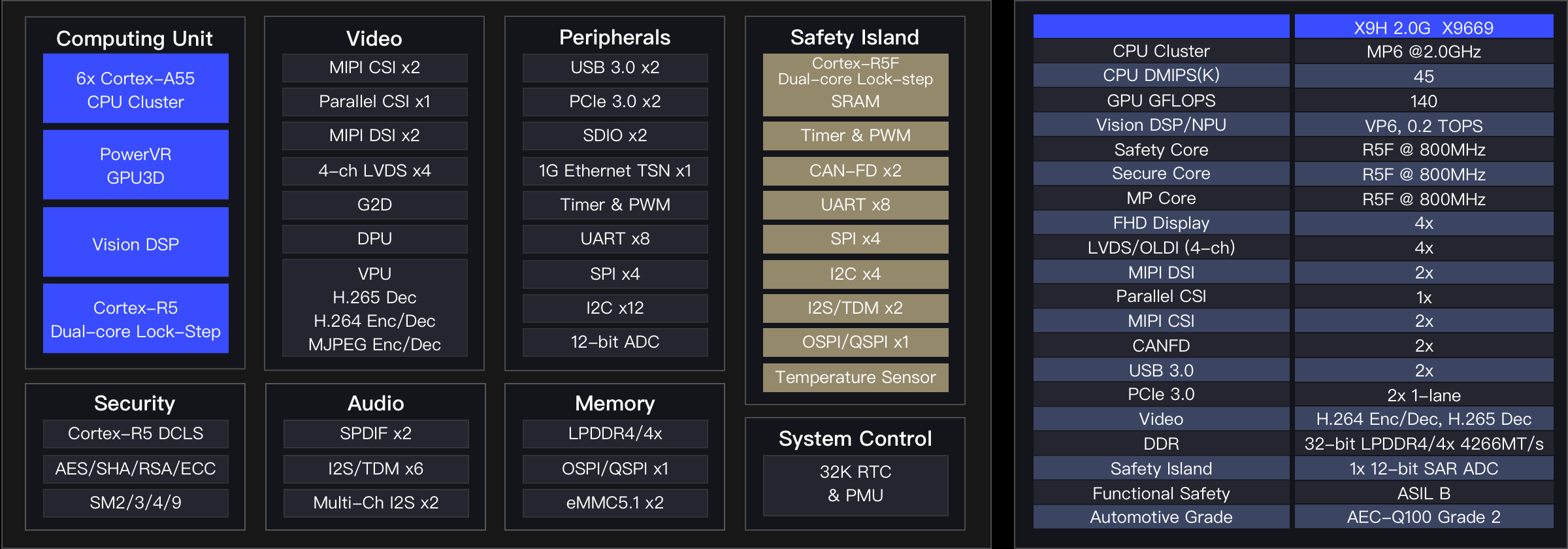

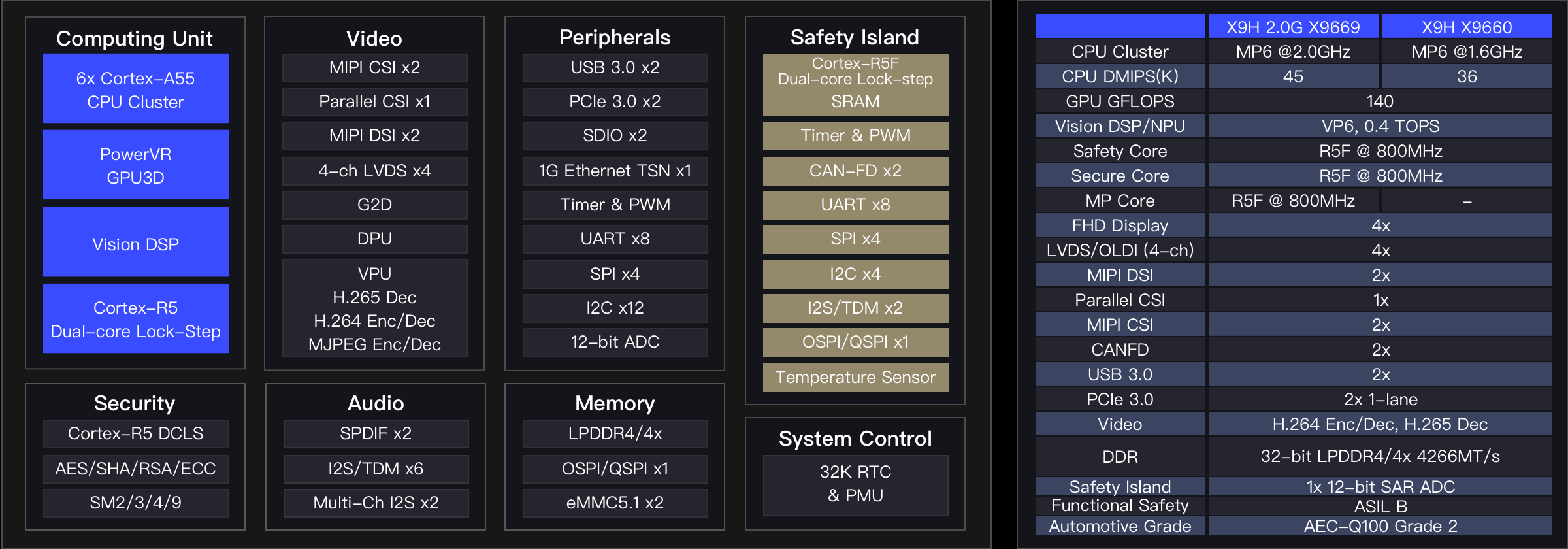

Equipped with 6 * ARM Cortex A55 cores; High-performance GPU, DSP, and a video processor to respond to the performance demands of middle-end IVI system;
- Built-in hardware security module (HSM); Dual-core lock-step Cortex-R5F CPU.
- Meets the Grade 2 reliability requirements of AEC-Q100; ASIL B certification of ISO 26262 for functional safety;
- Built-in independent safety island; Dual-core lock-step Cortex-R5F CPU; Diagnostic coverage in line with ASIL D functional safety requirements of ISO 26262.
Product Manual
Specification
Applications

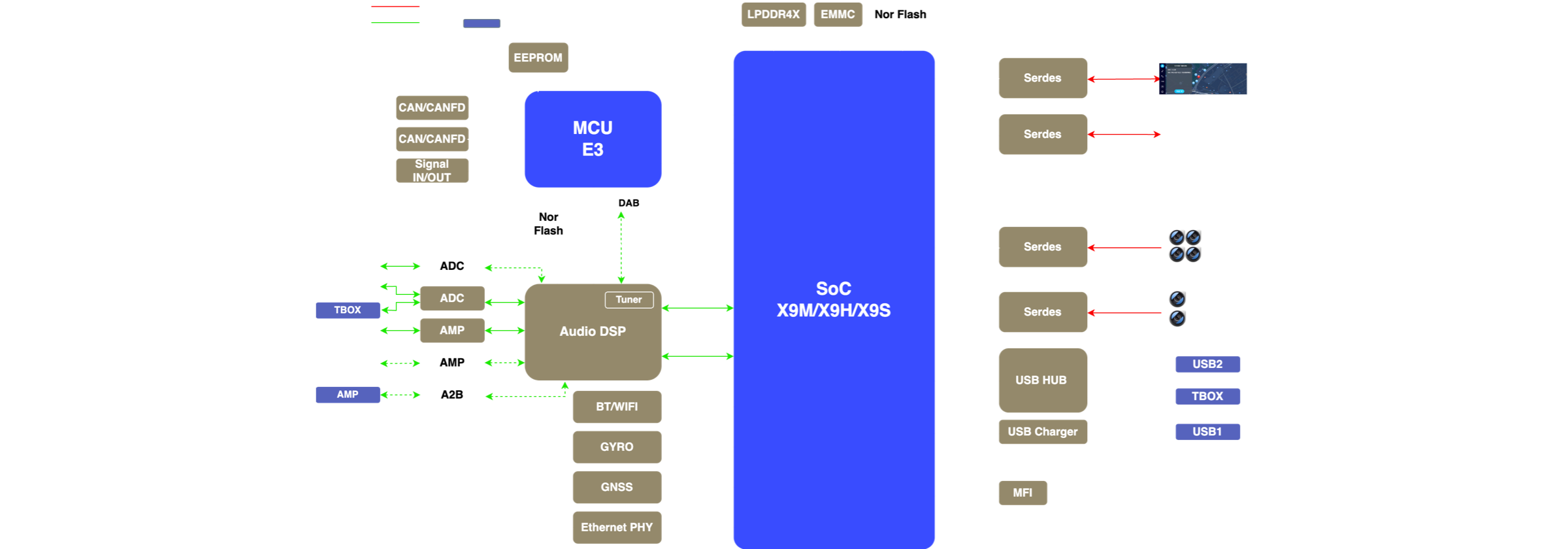

X9H-based In-vehicle Infotainment System Solution
Solution Features:
- Supports independent display of multiple screens and interaction among multiple screens; Supports up to 2.5K@60Hz to address the demands of multiple screens and large screens with high resolution and high frame rate in the e-cockpit.
- Supports real-time rendering of 3D HMI.
- Empowers e-cockpit applications such as voice assistant, audio and video entertainment, and intelligent navigation etc.
- Data inputs of up to 9 cameras simultaneously to fully cover the demands of e-cockpit.
- Built-in AI accelerator to enable the deployment and acceleration of functions such as DMS and OMS etc.
- Integrates high-definition surround view function and DVR function.
Software
ToolsCompilation Toolchain:
SDTOOL:
A toolkit related to host computer side of SemiDrive platform product, including drivers, download tools, Fuse tools, configuration tools, etc.
SDNN Tool:
SemiDrive AI compiler framework
SD Docker Tool
Source CodeLinux kernel
Android
Yocto
MCAL
SSDK：FreeRTOS
LK
MirrorBootloaders
QT6.5 for Linux cluster
Android
