X9HP

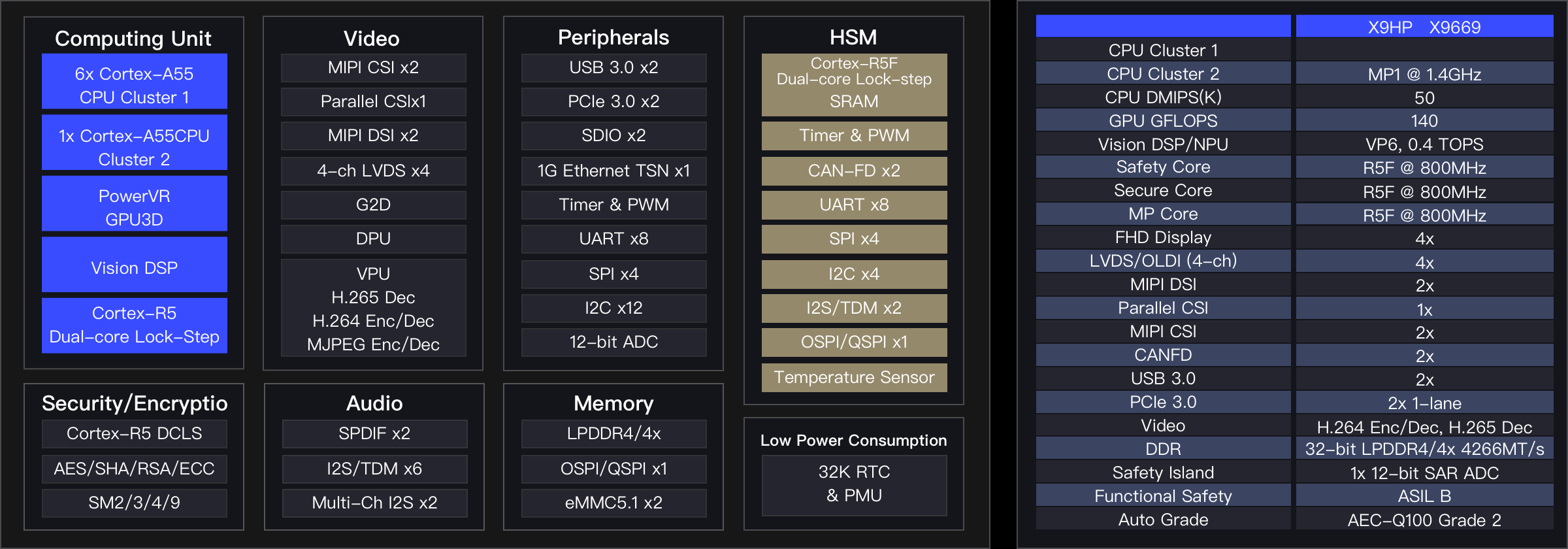

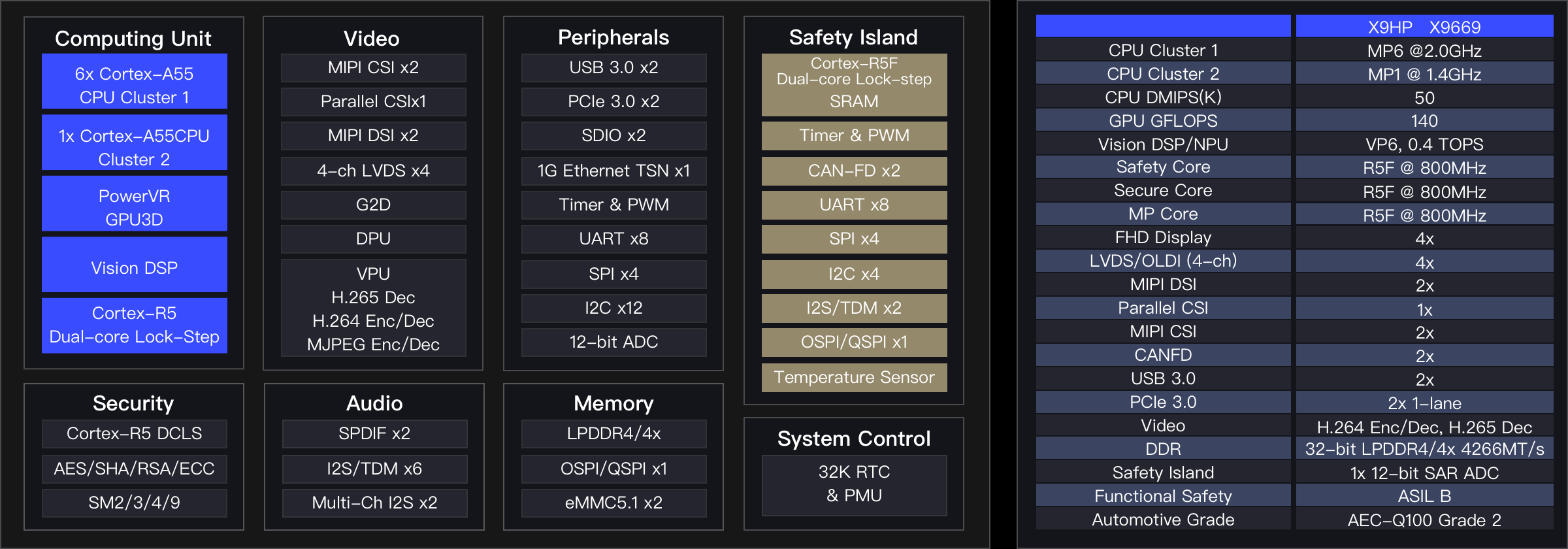

Product Features:
-
Hardware Isolation architecture without the need for Hypervisor; Supports multiple systems on a single chip to meet the safety demands of different functional domains
- Integrates high-performance CPU, GPU, DSP, video processor, and a rich variety of in-vehicle scenario interfaces
- Built-in hardware security module (HSM); Dual-core lock-step Cortex-R5F CPU
- Meets the Grade 2 reliability requirements of AEC-Q100; ASIL B certification of ISO 26262 for functional safety
- Built-in independent safety island; Dual-core lock-step Cortex-R5F CPU; Diagnostic coverage in line with ASIL D functional safety requirements of ISO 26262
Product Manual
Specification
Applications

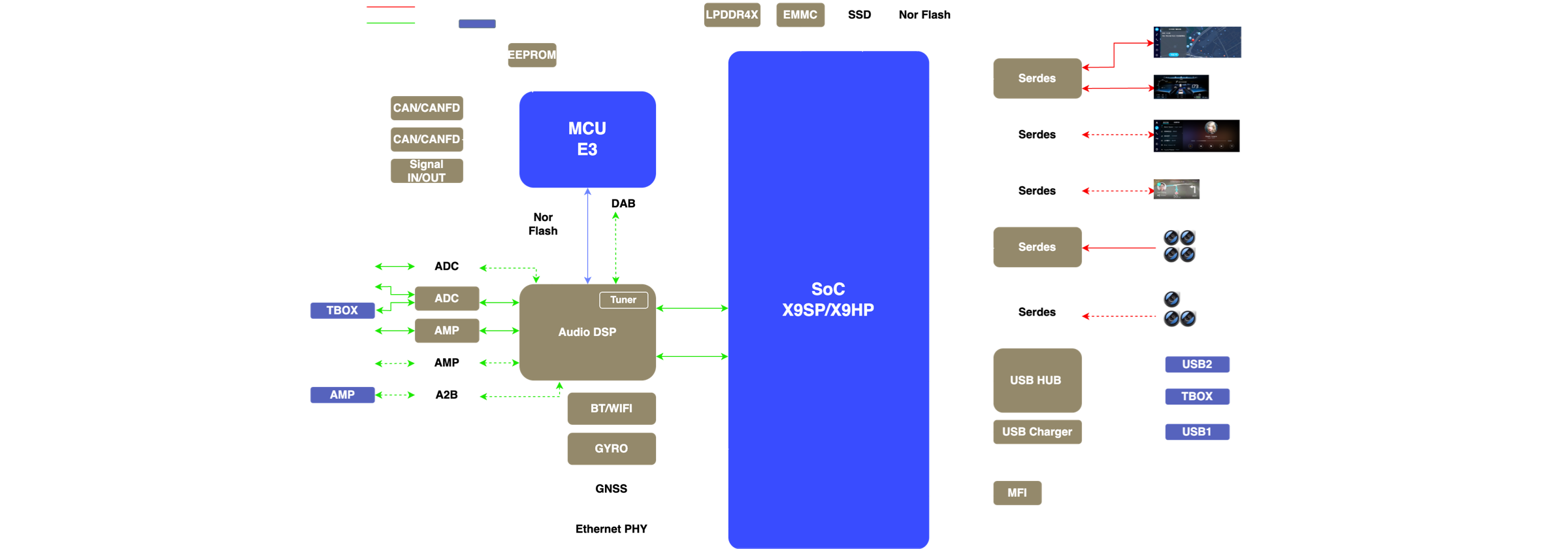

By virtue of the true hardware-isolated architecture and hardware Hypervisor technology of X9HP, SemiDrive provides a single-chip solution for E-Cockpit domain controller.
Solution Features
- Supports the deployment of systems such as cluster and infotainment system on a single chip to meet the functional safety demands of different levels in multiple domains
- Built-in AI accelerator engine to empower the deployment and acceleration of voice function, and DMS/OMS
- With a high-performance GPU and VPU, as well as a diverse range of video input and output interfaces, supports rendering of 3D HMI, display of 4 screens with high definition and high frame rate and interaction among multiple screens; Supports 2.5K@60Hz; Provides a secure display channel
- Equipped with a rich number of highly secure R5 cores to facilitate the integration of DVR and fast AVM
Software
ToolsCompilation Toolchain
SDTOOL:
A toolkit related to host computer side of SemiDrive platform product, including drivers, download tools, Fuse tools, configuration tools, etc.
SDNN Tool:
SemiDrive AI compiler framework
SD Docker Tool
Source CodeLinux kernel
Android
Yocto
MCAL
SSDK：FreeRTOS
LK
MirrorBootloaders
QT6.5 for Linux cluster
Android

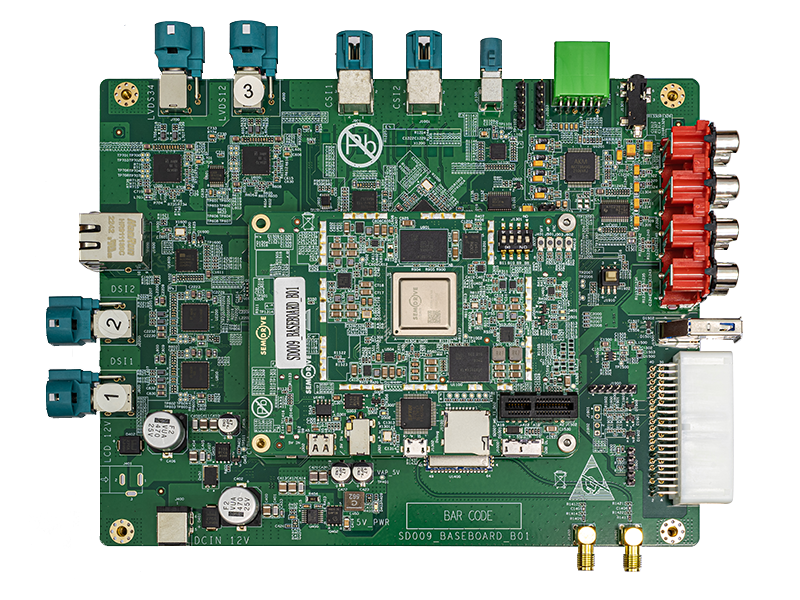

Hardware
No.
Material Name
Material Description
Unit
Quantity
1
X9HP core board
X9HP core board
pcs
1
2
Base plate of X9HP core board
Base plate of X9HP core board
pcs
1
3
DB5000 12.3-in TI Serdes daughter card
DB5000 12.3-in TI Serdes daughter card
pcs
3
4
12.3-in display screen
For video display (with FPC ribbon cable)
Set
3
5
USB harness Type-A to Micro USB
For assessment of the board's debugging and printing function
Pcs
3
6
4+2pin HSD harness
For connection to the dedicated Serdes interface of the screen's daughter card
Pcs
3
7
12V adapter
For power supply to the development board
Pcs
1
8
26X35cm electrostatic bag
For dust prevention of main board
Pcs
1
9
25X40cm electrostatic bag
For dust prevention of screen/main board
Pcs
3
10
Acrylic protective plate
For protection of devices on the main board/display screen
Set
4
11
Interior and exterior packaging
Inner lining foam and packaging carton
Set
1
